Product Overview
The Ambu® Neuroline Concentric range comprises single patient needle electrodes for EMG recordings. It is available in six different sizes to meet your needs with more choices. Superior robotic production with a unique vision control system ensures you a reliable and consistent quality.
Features
General information
Every size is manufactured with the optimum combination between strength and flexibility. A strength that will ensure that you can quickly locate the target area, and a flexibility that facilitates fine adjustments within the muscle.
The needle electrodes have a user-friendly hub with the special ribbing and now with an even more ergonomical shape to optimise your handling of the needle.
Specifications

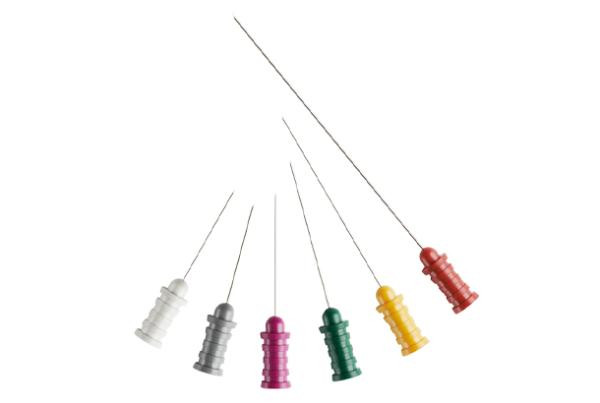

Needle Identification with colour coding:
| With pre-attached lead wire |
Length | Calibre | Recording Area |
||
| Item no. | mm | inches | mm | Gauge | mm2 |
| 740 25-30/25 | 25 | 1" | 0.30 | 30G | 0.02 |
| 740 25-45/25 | 25 | 1" | 0.45 | 26G | 0.07 |
| 740 30-35/25 | 30 | 1.2" | 0.35 | 28G | 0.02 |
| 740 38-45/25 | 38 | 1.5" | 0.45 | 26G | 0.07 |
| 740 50-45/25 | 50 | 2" | 0.45 | 26G | 0.07 |
| 740 75-65/25 | 75 | 3" | 0.65 | 23G | 0.07 |
Electrodes are packed in individual pouches. 25 electrodes per box.
To complement our concentric needles Ambu has introduced a soft, flexible and re-usable cable with DIN-connector.
Please look under Spare parts & Accessories for further information.
